Changzhou Meister Tent Co., Ltd High quality, Best service, Reasonable price
9 Years
| Ask Lasest Price | |
| Brand Name : | MST |
| Model Number : | MST-20 |
| Certification : | CE, ISO |
| Price : | USD20-60 per square meter |
| Supply Ability : | 18000 square meters per month |
| Delivery Time : | 10-25 days depends on the tent size |

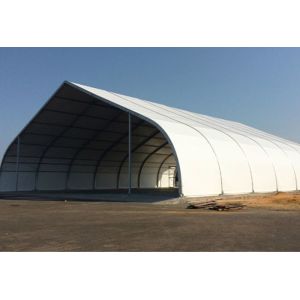

20x50m large outdoor aluminum structure exhibition tent for auto show
Specifications:
| Specification | |||||
| Model | Span (m) | Length (m) | Eave height (m) | Ridge height (m) | Main material (mm) |
| MST-3 | 3 | unlimited | 2.5 | 3 | 48x84x3 |
| MST-6 | 6 | unlimited | 2.5 | 3.5 | 48x84x3 |
| MST-8 | 8 | unlimited | 2.5 | 3.9 | 48x84x3 |
| MST-10 | 10 | unlimited | 2.5 | 4.3 | 48x84x3 |
| MST-12 | 12 | unlimited | 3 | 5 | 68x122x3 |
| MST-15 | 15 | unlimited | 3 | 5.43 | 108x150x3 |
| MST-18 | 18 | unlimited | 4 | 6.9 | 112x203x4.5 |
| MST-20 | 20 | unlimited | 4 | 7.2 | 112x203x4.5 |
| MST-25 | 25 | unlimited | 4 | 8 | 112x203x4.5 |
| MST-30 | 30 | unlimited | 4 | 8.8 | 113x259x5.5 |
| MST-40 | 40 | unlimited | 4 | 9.6 | 120x300x6 |
Quick details:
For its flexible structure, easy to assemble and dismantled feature, the heavy duty aluminum structure tent is more and more widely used on outdoor exhibitions and fairs.
Meanwhile, as a supplement of in-house exhibitions, it can be used as reception, ticket-entrance.
This 20x50m exhibition tent is made of aluminum structure, white pvc cover and walls for auto shows.
It’s with expand screw for concrete ground for fixing.
Description:
1. Main profile
The main frame is hard pressed extruded aluminum profile which can be used over 15 years.
The roof cover and side walls covers are high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
The side cover can be replaced by white pvc, sandwich wall or ABS walls.
The connectors is strong hot-dip galvanized steel.
2. Fixing methods:
3. Accessories:
Windows: clear PVC windows, glass window for glass wall
Flooring System: cassette flooring, simple cassette flooring, WPC flooring
Doors: double-wing glass door, single-wing glass door, fire door, electric shutter door
Wall: PVC wall, glass wall, ABS hard wall, sandwich panel wall, steel color sheet wall
Fixing Methods: ground anchors, weight plate, expand screw
Rain Gutters: rain gutters between two tents to protect from water or raining.
Other Optional Items: booth, AC, chairs, tables, lighting, mobile toilet etc.
4. Applications:
Widely used in outdoor exhibition, fairs, auto show, trade show, sports, conference, church activities,etc
5. Competitive Advantage:
1. No any pole inside,100% space is used.
2. The tent is put up by screws, easy to be assembled and dismantled, and easy to transport and store.
3. The length of the structure can be shortened or extended according to the requirements.
4. Environmentally friendly.
|
|
